Architecture

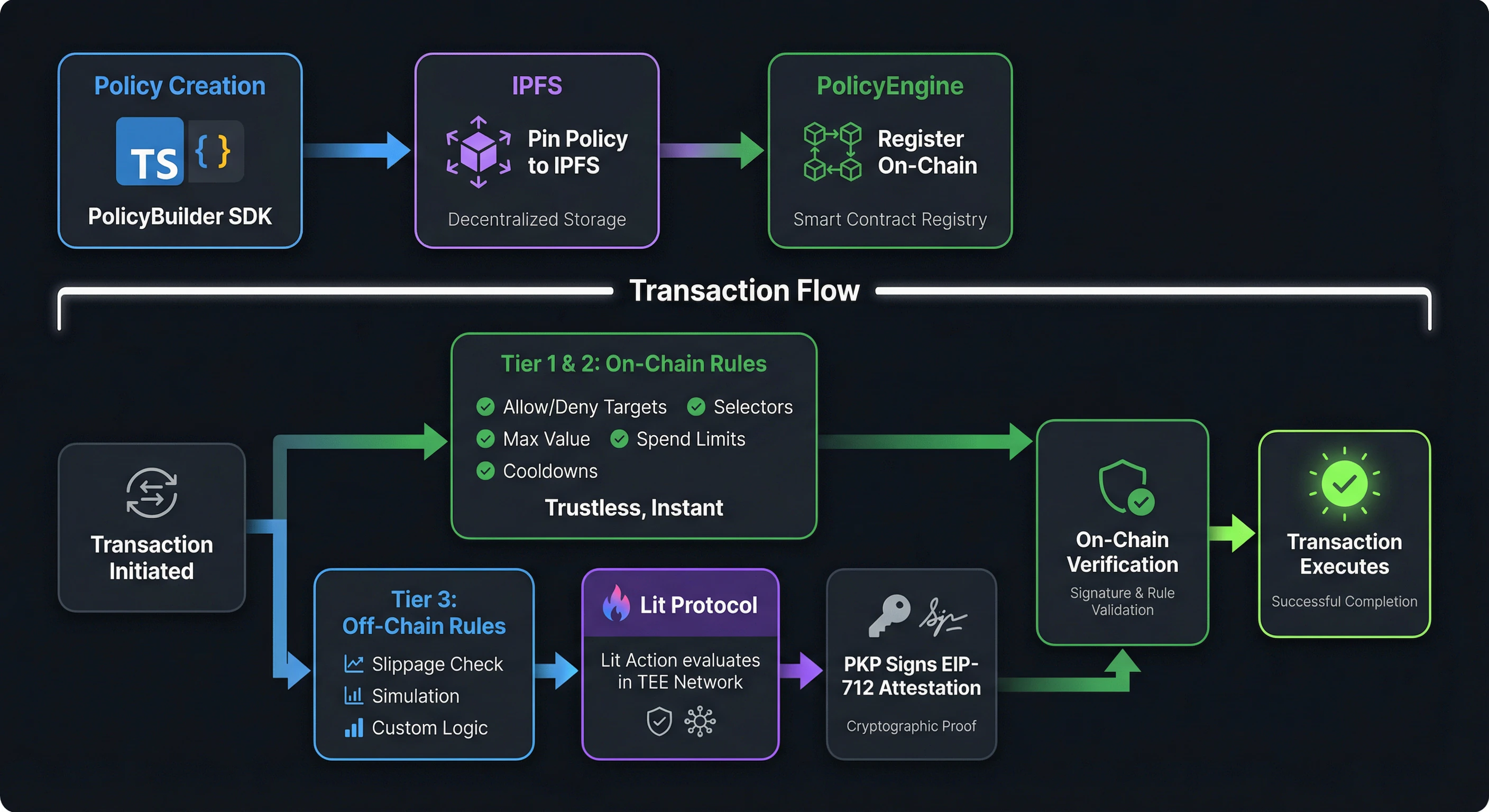

PolicyKit is designed as a layered system where each component has a clear responsibility. This page explains how the pieces fit together.System Overview
Component Responsibilities
SDK Layer
The SDK provides the developer-facing API:| Component | Responsibility |
|---|---|
PolicyBuilder | Construct policies using a fluent API |
PolicyKit | High-level orchestration — deploy, update, remove policies |
PolicyEngineClient | Typed wrapper for PolicyEngine contract calls |
PolicySimulator | Local evaluation for testing and development |
IPFSClient | Pin and retrieve policy JSON from IPFS |
LitClient | Interact with Lit Protocol for off-chain evaluation |
PolicyEncoder | Encode/decode policies for on-chain storage |
Smart Contract Layer
The on-chain contracts enforce policies at the transaction level:| Contract | Responsibility |
|---|---|
PolicyEngine | Stores policy sets, dispatches rule evaluation |
PolicyGuard | Guard hook for smart accounts |
PolicyKit7579Module | ERC-7579 module for compliant smart accounts |
| Rule Evaluators | Individual contracts per rule type |
AttestationVerifier | Verifies EIP-712 signed attestations from Lit |
Off-Chain Layer
Lit Protocol handles rules that require external data or complex computation:| Component | Responsibility |
|---|---|
policyEvaluator.action.ts | Main Lit Action that evaluates Tier 3 rules |
| Rule evaluators | Individual evaluators (slippage, simulation, custom) |
| PKP (Programmable Key Pair) | Signs attestations when rules pass |
Data Flow
Policy Deployment
- Developer builds a policy with
PolicyBuilder - Full policy JSON is pinned to IPFS via
IPFSClient - On-chain rules are encoded via
PolicyEncoder PolicyEngine.setPolicySet()is called with:- Policy CID (as
bytes32) - PKP address (for attestation verification)
- Encoded on-chain rules
- Fail mode and attestation requirements
- Policy CID (as
Transaction Evaluation
- A transaction is submitted to the smart account
PolicyGuardorPolicyKit7579Moduleintercepts it- On-chain rules (Tier 1 and 2) are evaluated by the
PolicyEngine - If off-chain rules exist, a Lit Action is triggered
- The Lit Action fetches the policy from IPFS using the CID
- Off-chain rules (Tier 3) are evaluated
- If all rules pass, the Lit network threshold-signs an EIP-712 attestation
- The attestation is verified on-chain by
AttestationVerifier - Transaction proceeds only if all checks pass
Security Model
Trust Assumptions
- On-chain rules: Fully trustless — evaluated by the EVM
- Off-chain rules: Trust the Lit Protocol network’s decentralized TEE infrastructure
- IPFS storage: Content-addressed — CID ensures policy integrity
- Attestations: EIP-712 typed signatures verified on-chain
Attack Surface
PolicyKit minimizes the attack surface by:- Keeping critical rules on-chain where possible
- Using threshold cryptography (no single point of failure for attestations)
- Content-addressing policies on IPFS (tamper-evident)
- Supporting “closed” fail mode for high-security deployments
